Parts Break Down:
Click The Part Number to search For Part
| Reference # | Mfg Part Number | Qty | Product Description | |
| 4 | 2931171066 | 1 |
|
|
| 7 | 3858002102 | 1 |
|
|
| 8A | 3851299010 | 1 | HANDLE, DR,ST,FRZ,L,FF,R USE 3851299036 | |
| 8A | 3851299036 | 1 |
|
|
| 8B | 3851299028 | 1 | HANDLE ,DR,ST,FRZ,R,FF,L USE 3851299044 | |
| 8B | 3851299044 | 1 |
|
|
| 9 | 3858040029 | 1 | SCREW, ELM 5 X 10 BLACK | |
| 10 | 3850973011 | 1 | SHELF,DR FRZ,CLR USE 3850973045 | |
| 10 | 3850973045 | 1 | UPPER DOOR SHELF, CLEAR, NO TEXTURE | |
| 11 | 3851052013 | 1 | SHELF,DR SUPERCEDED BY 3851052039 USE 3851052047 | |
| 11 | 3851052047 | 1 | LOWER DOOR SHELF, CLEAR | |
| 14 | 3850976022 | 1 | DR SHELF RAIL,WHT, 235.7MM | |
| 17 | 2932658046 | 1 | BOTTLE HOLDER | |
| 20 | 2932722008 | 1 | DECAL, CAUTION | |
| 20 | 3850581004 | 1 | DECAL, CAUTION FRENCH | |
| 25 | 3851214019 | 1 | HOLDER,PROBE ASM,BLK | |
| 26 | 3858006061 | 1 | SCREW, PT 30X12 | |
| 27 | 3851244016 | 1 | DOOR STOP LEFT | |
| 28 | 3851244024 | 1 |
|
|
| 30 | 3851169072 | 1 | FREEZER DOOR RIGHT | |
| 31 | 3851169080 | 1 | FREEZER DOOR LEFT | |
| 34 | 3851228027 | 1 |
|
|
| 35 | 3851128019 | 1 |
|
|
| 40 | 3851092019 | 1 | LOCK BAR | |
| 42 | 3850497011 | 1 |
|
|
| 43 | 3850496013 | 1 |
|
|
| 51 | 3858071024 | 1 |
|
|
| 52 | 3851104012 | 1 | FLAP | |
| 62 | 3858002268 | 1 | SCREW, RXS B8X19 |
| Reference # | Mfg Part Number | Qty | Product Description | |
| 1 | 3850989025 | 1 |
|
|
| 2 | 2932647015 | 1 |
|
|
| 4 | 3850989017 | 1 | HINGE, UPP,L,PNTD-BLK | |
| 6 | 2932648021 | 1 |
|
|
| 6 | 29326430300 | 1 |
|
|
| 21 | 3851072011 | 1 | FRONT, BLACK | |
| 22 | 3850970017 | 1 | LENS,SMOKE GREY,18.1 | |
| 23 | 3850969019 | 1 | PRINTED CIRCUIT BOARD | |
| 24 | 3858006012 | 1 | SCREW, PT (PH4 X 10) | |
| 25 | 2954568016 | 1 | CABLE,CONTROL | |
| 26 | 3850964010 | 1 | BUTTON ASM, 2-WAY | |
| 30 | 3851035000 | 1 |
|
|
| 36 | 3851212013 | 1 |
|
|
| 37 | 3851211015 | 1 | HOLDER | |
| 38 | 2932649029 | 1 | HINGE PIN, LOWER | |
| 39 | 3858010022 | 1 |
|
|
| 60 | 2932664093 | 1 |
|
|
| 60 | 2932664106 | 1 | KICKPLATE W/FM BLK | |
| 81 | 3851102016 | 1 |
|
|
| 81 | 3851102024 | 1 |
|
|
| 82 | 3851103014 | 1 |
|
|
| 83 | 3858002300 | 1 | SCREW RXS 4.2X25 | |
| 105 | 3858004041 | 1 | SCREW, MRX 4X6 FZ | |
| 106 | 3858039104 | 1 | SCREW, BLK, MRX-TT M4X10 | |
| 107 | 3858010113 | 1 |
|
|
| 108 | 3858009057 | 1 | NUT, ML6 M6-BLK USE 29326430300 | |
| 108 | 29326430300 | 1 |
|
|
| 111 | 3858002201 | 1 | SCREW, RXS B8X9.5 |
| Reference # | Mfg Part Number | Qty | Product Description | ||||||||
| 2 | 3850585013 | 1 |
|
||||||||
| 3 | 3851166011 | 1 |
|
||||||||
| 4 | 3851222012 | 1 | COVER | ||||||||
| 5 | 3851050017 | 1 |
|
||||||||
| 6 | 2931117226 | 1 |
|
||||||||
| 7 | 2002301006 | 1 | PLUG,THERMISTOR,WHT USE 38510590422 | ||||||||
| 7 | 38510590422 | 1 |
|
||||||||
| 8 | 3851229017 | 1 |
|
||||||||
| 9 | 3851208011 | 1 |
|
||||||||
| 10 | 3851209019 | 1 | RACK | ||||||||
| 11 | 2007337252 | 1 | RAIL,SHELF-594MM | ||||||||
| 12 | 3851236012 | 1 |
|
||||||||
| 13 | 3851236020 | 1 | SHELF ASM, WIRE | ||||||||
| 14 | 3851237010 | 1 |
|
||||||||
| 15 | 3851236038 | 1 |
|
||||||||
| 16 | 3851023014 | 1 | SHELF,WIRE,324-277MMM,FRZ | ||||||||
| 17 | 3851153019 | 1 | SUPPORT, SHELF-REAR | ||||||||
| 18 | 3851075014 | 1 | IGNITION AUTOLOCK ASM | ||||||||
| 21 | 2932102011 | 1 | CLIP,SHELF WIRE-WHT | ||||||||
| 22 | 2932101013 | 1 |
|
||||||||
| 23 | 2932103019 | 1 | PLUG,SHELF WIRE-WHT USE 3316450.9019 | ||||||||
| 23 | 3316450.902 | 1 |
|
||||||||
| 28 | 2932636018 | 1 |
|
||||||||
| 32 | 2932108018 | 1 | TERMINAL,LIGHT HOUSING - NLA | ||||||||
| 35 | 165521030 | 1 | EXPANSION RIVET | ||||||||
| 42 | 3850962014 | 1 | COVER,LAMP | ||||||||
| 43 | 2007290006 | 1 |
|
||||||||
| 44 | 2007337179 | 1 |
|
||||||||
| 46 | 2930693045 | 1 |
|
||||||||
| 46 | 20073372111 | 1 |
|
||||||||
| 48 | 3850963012 | 1 | REFLECTOR | ||||||||
| 49 | 3850961016 | 1 | HOUSING, LAMP USE 3850960018 | ||||||||
| 49 | 3850960018 | 1 |
|
||||||||
| 50 | 3851089015 | 1 | BIN,CRISPER,CLR | ||||||||
| 51 | 3851090013 | 1 | DIVIDER, CLR | ||||||||
| 60 | 3850679014 | 1 | BRACKET, THERMISTOR | ||||||||
| 63 | 3858036027 | 1 | SCREW, KFXS 4.8X55 | ||||||||
| 64 | 3858010147 | 1 |
|
||||||||
| 65 | 2932400027 | 1 | CAP, WHITE | ||||||||
| 106 | 3858039104 | 1 | SCREW, BLK, MRX-TT M4X10 |

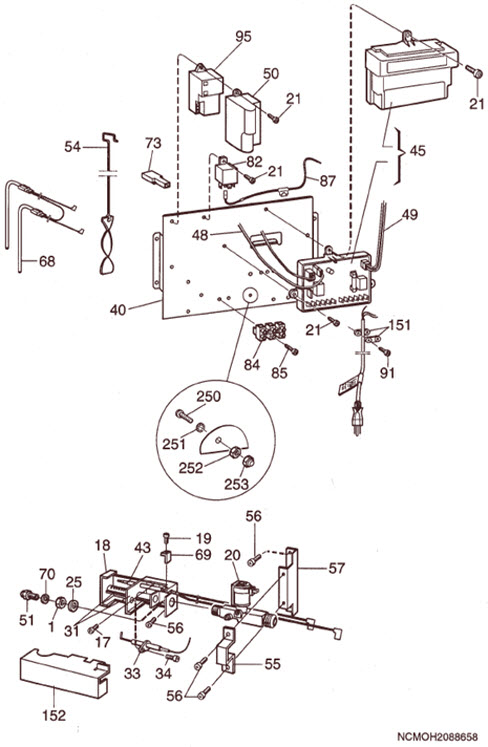

| Reference # | Mfg Part Number | Qty | Product Description | |
| 1 | 140207044 | 1 |
|
|
| 17 | 3858039039 | 1 |
|
|
| 18 | 2932161017 | 1 |
|
|
| 19 | 3858002144 | 1 |
|
|
| 20 | 2932615020 | 1 | VALVE, SOLENOID | |
| 21 | 3858002151 | 1 |
|
|
| 25 | 3858010071 | 1 |
|
|
| 25 | 2932034047 | 1 |
|
|
| 31 | 955001672 | 1 | TUBE, BURNER | |
| 33 | 2932781046 | 1 | ELECTRODE | |
| 34 | 3858002052 | 1 | SCREW RXS B6 X 13 | |
| 40 | 3851198014 | 1 | BRACKET | |
| 43 | 2931826032 | 1 | THERMOCOUPLE | |
| 45 | 3851005029 | 1 | MODULE, POWER | |
| 48 | 3851059042 | 1 | THERMISTOR USE 38510590422 | |
| 48 | 38510590422 | 1 |
|
|
| 49 | 2954539058 | 1 | WIRE, SOLENOID VALVE | |
| 50 | 2931886010 | 1 | COVER, IGNITOR | |
| 51 | 2007419332 | 1 | RUBY JET #76 USE 2932034047 | |
| 51 | 2932034047 | 1 |
|
|
| 54 | 2932667054 | 1 | BAFFLE, FLUE | |
| 55 | 2932662014 | 1 |
|
|
| 55 | 2932034047 | 1 |
|
|
| 56 | 3858039047 | 1 |
|
|
| 57 | 2932043017 | 1 |
|
|
| 68 | 3850644539 | 1 | HEATER, 210W 120VAC | |
| 69 | 2930660010 | 1 | RETAINER | |
| 70 | 2007457001 | 1 |
|
|
| 70 | 2932034047 | 1 |
|
|
| 73 | 2931963017 | 1 | CONNECTOR, Y- 3 WAY | |
| 82 | 2930385006 | 1 |
|
|
| 84 | 3858022027 | 1 |
|
|
| 85 | 3858002185 | 1 | SCREW, RXS B6 X 19 (ZINC) | |
| 87 | 2954553034 | 1 | WIRE ASM,FUSED 4A | |
| 91 | 3858002177 | 1 | SCREW, ZINC-PLTD RXS B6X19 | |
| 95 | 2931132019 | 1 |
|
|
| 151 | 561014010 | 2 |
|
|
| 152 | 2931401018 | 1 | COVER,BURNER HOUSING | |
| 250 | 3858004033 | 1 | SCREW, MRX M4X16 ZINC PLATED | |
| 251 | 3858011012 | 1 | WASHER, LOCK 4.3X8 | |
| 252 | 3858009016 | 1 |
|
|
| 253 | 3858028024 | 1 | NUT, LOCK M4 ZINC-PLATED |
| Reference # | Mfg Part Number | Qty | Product Description | |
| 33 | 3858039096 | 1 |
|
|
| 100 | 2934949104 | 1 |
|
|
| 100 | 3313470015 | 1 | COOLING UNIT, 949E | |
| 101 | 173228008 | 1 |
|
|
| 101 | 173228008 | 1 |
|
|
| 102 | 2933557023 | 1 | HEATER COVER | |
| 110 | 3850600010 | 1 |
|
|
| 112 | 2932115013 | 1 |
|
|
| 112 | 3316102.902 | 1 |
|
|
| 113 | 2932733005 | 1 |
|
|
| 113 | 29327760044 | 1 |
|
|
| 114 | 2002699110 | 1 |
|
|
| 115 | 3851183016 | 1 |
|
|
| 116 | 3851184014 | 1 | BRACKET, FAN | |
| 117 | 2932749100 | 1 | HOSE, DRAIN | |
| 120 | 2002699177 | 1 | CORD SET USE 2002699110 | |
| 120 | 2002699110 | 1 |
|
|
| 125 | 3850306055 | 1 | THERMO FUSE | |
| 126 | 3858002318 | 1 | SCREW, RXS 4.2 X 32 | |
| 135 | 2932155019 | 1 |
|
|
| 140 | 3850582002 | 1 | LABEL USE 29327760044 | |
| 140 | 29327760044 | 1 |
|
|
| 141 | 3850583000 | 1 | LABEL |
