Dinosaur Electronics (UIB 24VAC) | 24V AC FURNACE IGINTER BOARD (PARK MODEL)

Limited stock
$114.99
SKU: YF-UIB24VAC

Dinosaur Electronics (UIB 24VAC) | 24V AC FURNACE IGINTER BOARD (PARK MODEL)

U2013799 , U2013801

Size: 3.43" x 5.10"


This is a replacement control board for 24 VAC Park Model Furnaces with Fan Control. The "3 Try Operation" shuts the fan motor off a minute and a half after the 3rd ignition try fails to sense a flame. It then waits one hour and tries the cycle again before locking out, requiring the thermostat to be reset. A Bi-Color LED comes on "Green" after power appears on the "Air" terminal. The LED turns "Red" when power is applied to the valve terminal

3 YEAR LIMITED WARRANTY

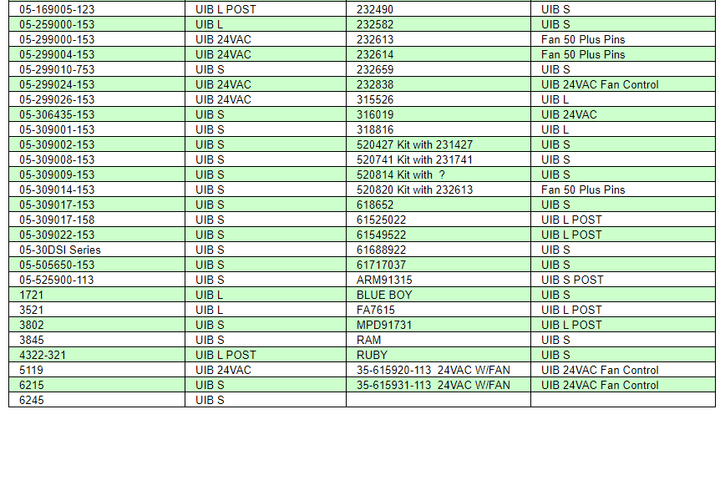

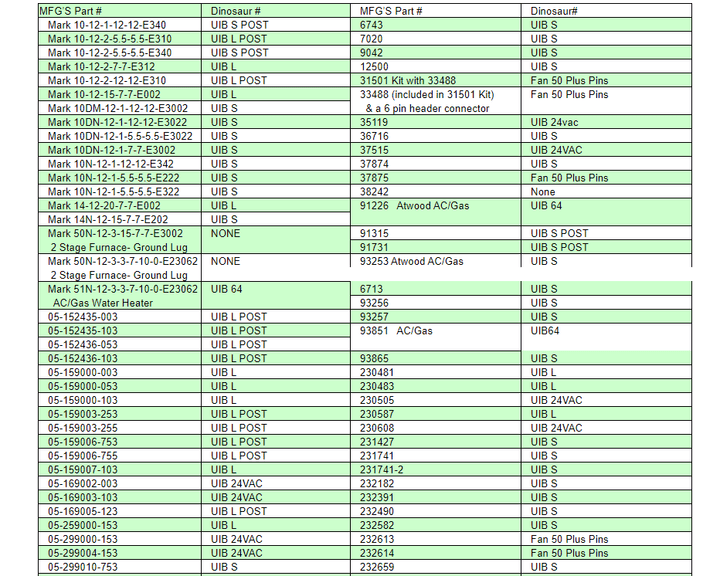

compatible with:

05-169002-003 , 05-169003-103 , 05-299000-153 , 05-299004-153 , 05-299024-153 , 05-299026-153 , 5119 , 35119 , 37515 , 230505 , 230608 , 316019
