i5 US System - 20.8" Dish w/All-Americas LNB

Review the part number and full product details below before purchasing.

Brand Intellian
Product Type Satellite TV Antennas
Verification Details

Product Information

Brand Intellian
Product Type Satellite TV Antennas
SKU NT-ITLB4509AA
Condition New
Availability Type Online Only
Availability Available to order online — Only 3 left
Product Description

Full Product Details

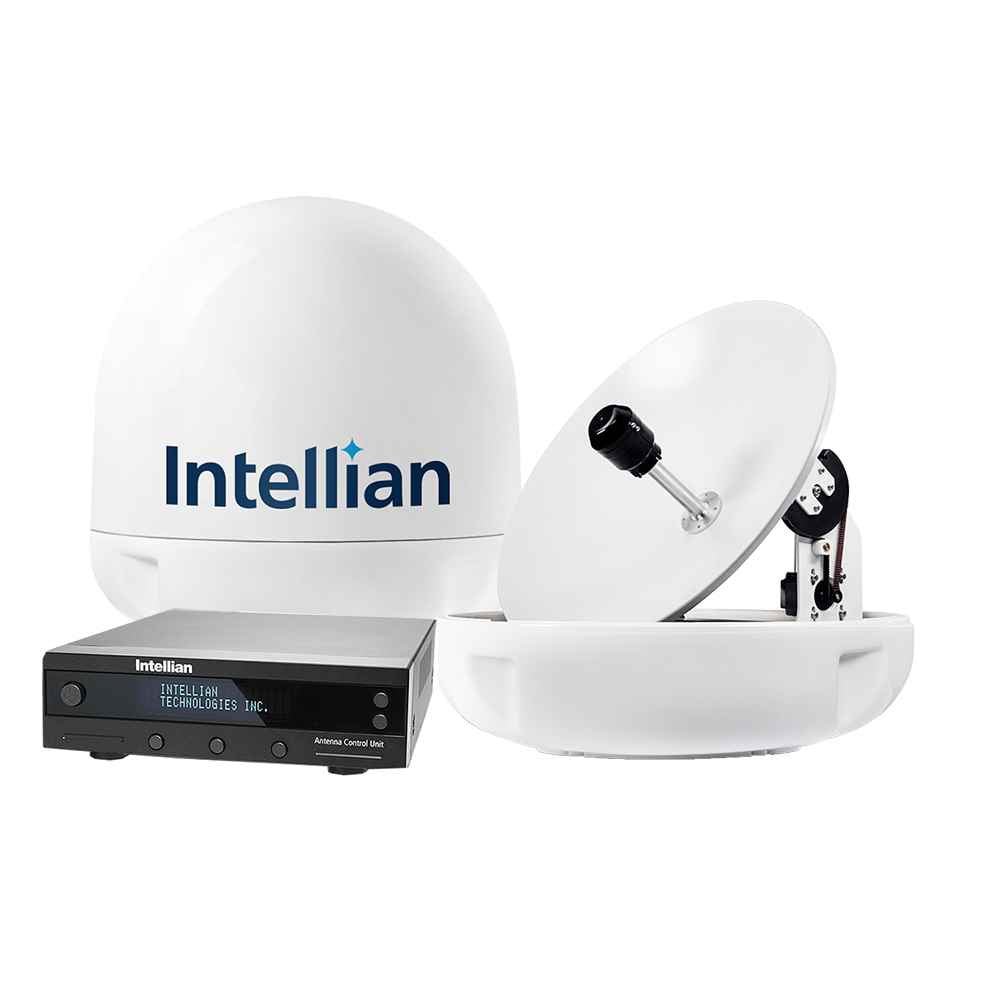

i5 US System - 20.8" Dish w/All-Americas LNB

The i5 is a significant addition to Intellian's TVRO product lineup and has also created another size category for marine satellite TV systems. The unique form factor is directly addresses the needs of offshore cruising vessels ranging from 40-60' in length.

The radome diameter of the i5 is 61cm (24") and it delivers extended coverage with a compact size. Intellian's signature iQ2 technology delivers quicker and quieter signal tracking and simple installation for the ultimate customer experience. The system's Wi-Fi enabled antenna control unit (ACU), provides the option to manage the system wirelessly via PC or Mobile Device, using Intellian's graphically intuitive control application, Aptus.

Features:

Just the Right Fit
The i5 is the world's first 20" satellite TV antenna purpose built for offshore cruising vessels in the 40-60' range. It's performance enables reception of TV service throughout the Bahamas, Caribbean and Mexico, while it's size is better suited for vessels under 60' in length.

Simple & Easy installation
With a single cable to connect the antenna and the ACU, the i5 system is quick and easy to install. Our intuitive ACU features a front panel display with functional keys and requires minimal setup so you can begin to enjoy TV programs in no time.

Quicker & Quieter
Intellian's patented iQ2 technology delivers the best user experience available on the market today. An advanced signal searching algorithm acquires the satellite 4-5 times faster than conventional methods. Intelligent, real time beam analysis holds the signal and reduces overall motor movement by up to 80%, eliminating annoying background noise while at anchor or in the slip.

Built-in GPS
The i5 includes a built-in GPS, which facilitates an easier installation by eliminating the need to integrate with the vessel's system. Additionally, the GPS enables faster signal acquisition and improves overall tracking performance.

Standard All Americas LNB
The i5 is built to cruise offshore throughout the Americas. For this reason it comes standard with Intellian's own All America's LNB, meaning users will not have to swap LNBs when sailing between regions.

Wireless Control via Aptus
Built-in Wi-Fi enables the ACU to be wirelessly managed and controlled via Aptus PC or Mobile, Intellian's graphical antenna control software. Aptus user-friendly displays vital performance metrics in a graphical format that simplfies operation. It even includes an auto diagnostic function designed to help solve problems quickly should they arise. The Aptus Mobile application is available in the Apple Store and through Google Play.

Instant Updates
Occasionally satellite TV service providers make unannounced changes to their network that cause outages for marine users who do not receive regularly scheduled updates via their at home dish. Aptus Mobile automatically checks for these updates, enabling users to stay current with any changes through a simple mobile app process.

Tune in your favorite HDTV channels
Intellian's i5 recieves HD channels from any Ku- band TV service. Enjoy HD programming whether cruising in the US, Mexico or the Caribbean.

Specifications:
Physical
  • Radome Height: 62.7cm / 24.7"
  • Radome Diameter: 61cm / 24"
  • Reflector Diameter:53.5cm / 21"
  • Weight: 17.3kg / 38lbs

Environmental
  • Operating Temp. Range: -25°C to +55°C / -13°F to +131°F
  • Storage Temp. Range: -40°C to +80°C / -40°F to +176°F
  • Water Ingress: IPX6
  • Approvals: CE / FCC
  • Warranty: 3 year parts and 2 year labor

Performance
  • Reception Frequency: Ku-band (10.712.75GHz)
  • Polarization: RHCP / LHCP
  • Minimum EIRP: 47dBW
  • Azimuth Range: 680L
  • Elevation Range: 0° to +90°
  • Ship's Motion Roll: ±25°, Pitch ±15°
  • Roll & Pitch Response Rate: 50° / sec
  • Turning Rate: 50° / sec
  • RF Output: Dual Output

Antenna Control Unit
  • Dimensions (WxDxH): 17.8cm x 21.7cm x 5.4cm / 7" x 8.5" x 2.1"
  • Weight: 1.2kg / 2.6lbs
  • Display: 2 line 20 character VFD module
  • GPS Interface: Built-in (NMEA 0183 GPS)
  • Power Requirement: 9.030.0V DC
  • Power Consumption: Typ. 30W, Max. 50W
